Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card
Press Laminator
Production Specification
| 1. Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card Press Laminator- Introduction |

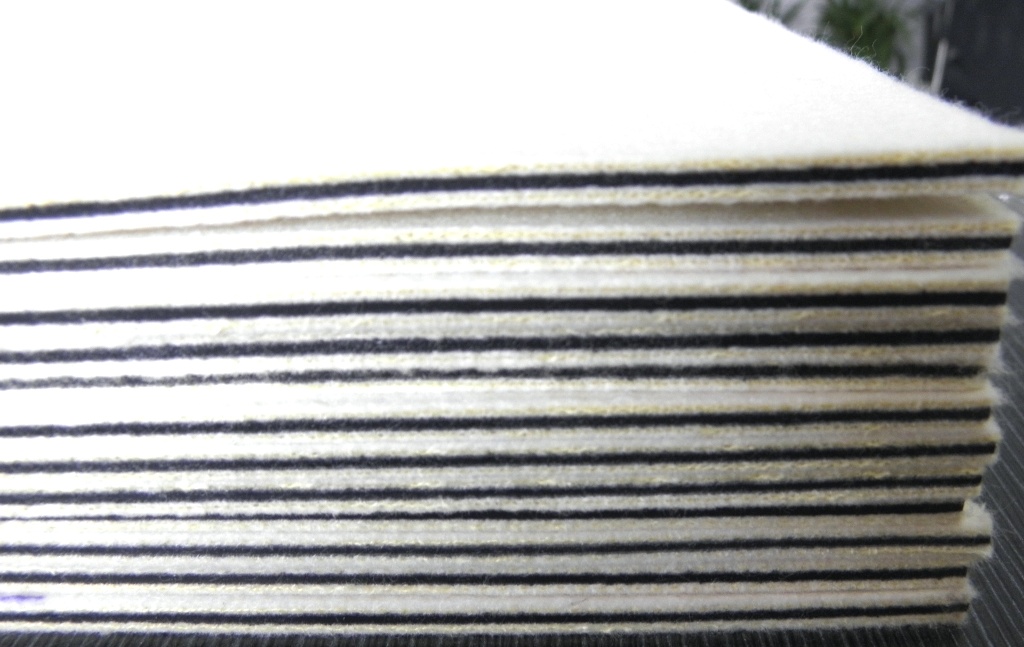

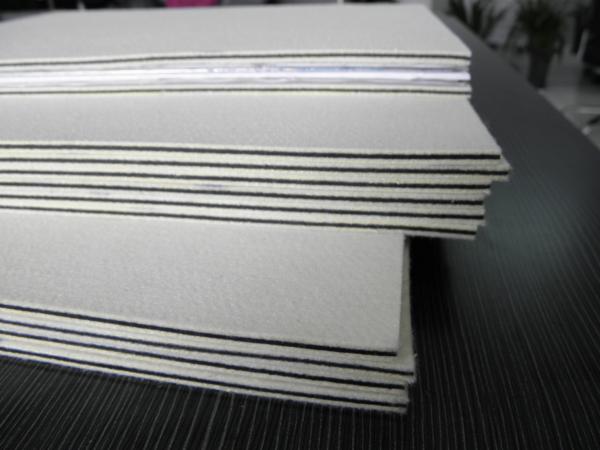

Woolen Felt Cushion Pad is designed for the lamination process for various plastic cards
including bank card, credit card, and royalty card. It works with
lamination steel plate in the plastic card lamination process.
The structure of white silicon cushion pads is heatproof woolen
felt layers on the surfaces with black silicon rubber in the
middle.
Detailed Product Description
(1) Woolen felt cushion
(2) High tensile strength and tearing strength, heat resistant up to 250
(3) Long service life
(4) Product Application: It is used for hot-press , widely used for
card laminating or furniture , wooden doors of the pressure paste .
(5) Product specification: 1) thickness: 3mm 2) maximum width:
3800mm with no joint 3) any length 4) color: woolen felt layers on the surfaces with black silicon rubber in
the middle.
| 2. Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card Press Laminator- Specification |
Product Parameter :
1). Heatproof performance: 200℃
2). Tensile strength: 80 N/mm
3). Adhesion: 80 N/mm
4). Hardness SHORE A: 55±5
5). Thickness: 3mm
6). Length and width: in sheet, 201*297 mm ( A4 ) , 310*480 mm ( A3
) or custom-made size (size tolerance: ±1mm)
| Facing material | High-temperature endurable felt |
| Middle material | Black silica gel |
| Rigidity | 50±5 |
| Tensile strength(N/mm) | 60 |
| Adhesion N/mm | 2.5-4.5 |
| Heat-resistant t (℃) | 200 |
| Breaking strength | 80MPa |
| Surface Finish | Woolen surface |
Key Features:
1). It is heatproof with great durability, which can well meet the
technological requirements in plastic card lamination .
2). It can transfer heat quickly and evenly , which can improve
production efficiency and energy conservation .
3). It has good performance of high temperature resistance and
excellent elastic resilience .
4). It has good cushioning performance to avoid the damage and
scratching resulting from direct contacting between laminator
template and lamination steel plates , which can extend the service
life of both lamination steel plates and template .
The technical Items:
| Model number | MRP-2 |
| Normal Thickness | 3mm (Thickness tolerance: ±0.05mm) |
| Pad size | in sheet, A3, A4 or custom-made size |
| Heat-resistant t ( ℃ ) | 200 |
| Breaking strength | 80 Mpa |
| Hardness SHORE A | 55±5 |
| Adhesive force | 2.5 -4.5 N/mm |
| Breaking extensibility | 350 % |
| Function | Insulation Laminating woolen |
| Packaging box | In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| 3. Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card Press Laminator- Application |
It is used for hot-press , widely used for card laminating or
furniture , wooden doors of the pressure paste .
Technical Parameters:
1). Heatproof performance: 200℃
2). Tensile strength: 80 N/mm
3). Adhesion: 60 N/mm
4). Hardness SHORE A: 55±5
5). Thickness: 3mm
6). Length and width: A4, A3 or custom-made size (size tolerance:
±1mm)
| 4. Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card Press Laminator- Packing |
In standard export carton and In strong plywood package
|
|
