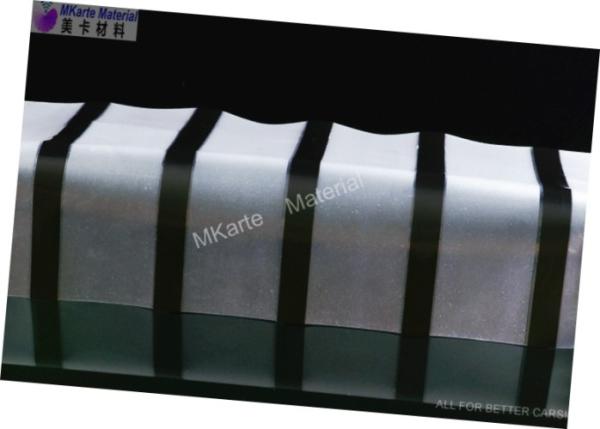

A3 PVC Coated Overlay with Hico Magentic Stripe for PVC Card Lamination​

1.Technical Specification of A3 PVC Coated Overlay with Hico Magentic Stripe for PVC Card Lamination​

Technical Parameters:
1. Size: in sheet, A4, A3 or as per customer requirements

2. Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10

3. Magnetic stripe feature: HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY

4. Size tolerance: +/-0.5 mm in length and width, +/-5% in thickness.

5. Color: transparent with one-side glue coating.

6. Package method: 100/200 sheets per bag or as per customer requirements.

7. Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

2.Other Features of 0.08mm High Adhesion A4 Size PVC Coated Overlay with Magnetic Stripes

Features

♦ Chemically stable.

♦ PVC Coated Overlay with Black Magnetic Stripe.

♦ One side is coated with hot-melt glue.

♦ High bonding strength makes high quality cards.

♦ Goes well with offset , screen or inkjet printed pvc sheets.

♦ applicable for press lamination type.
♦ Easy to use, simplify swipe cards production process.
♦ anti-abasion, extend card life.

Steps to make cards:

1.Put printing core and two overlays together, then put into the laminator.(the laminating temperature and time is determined as per the instruction of the machine).Please be noticed that all glue sides of both PVC sheets and Overlays are put inward.

2.Tlamination lasts 10-15 minutes. The pressure is 6-8Mpa.The temperature is 120-140°C.

3.Cutting the card.

3.Application of 0.08mm High Adhesion A4 Size PVC Coated Overlay with Magnetic Stripes

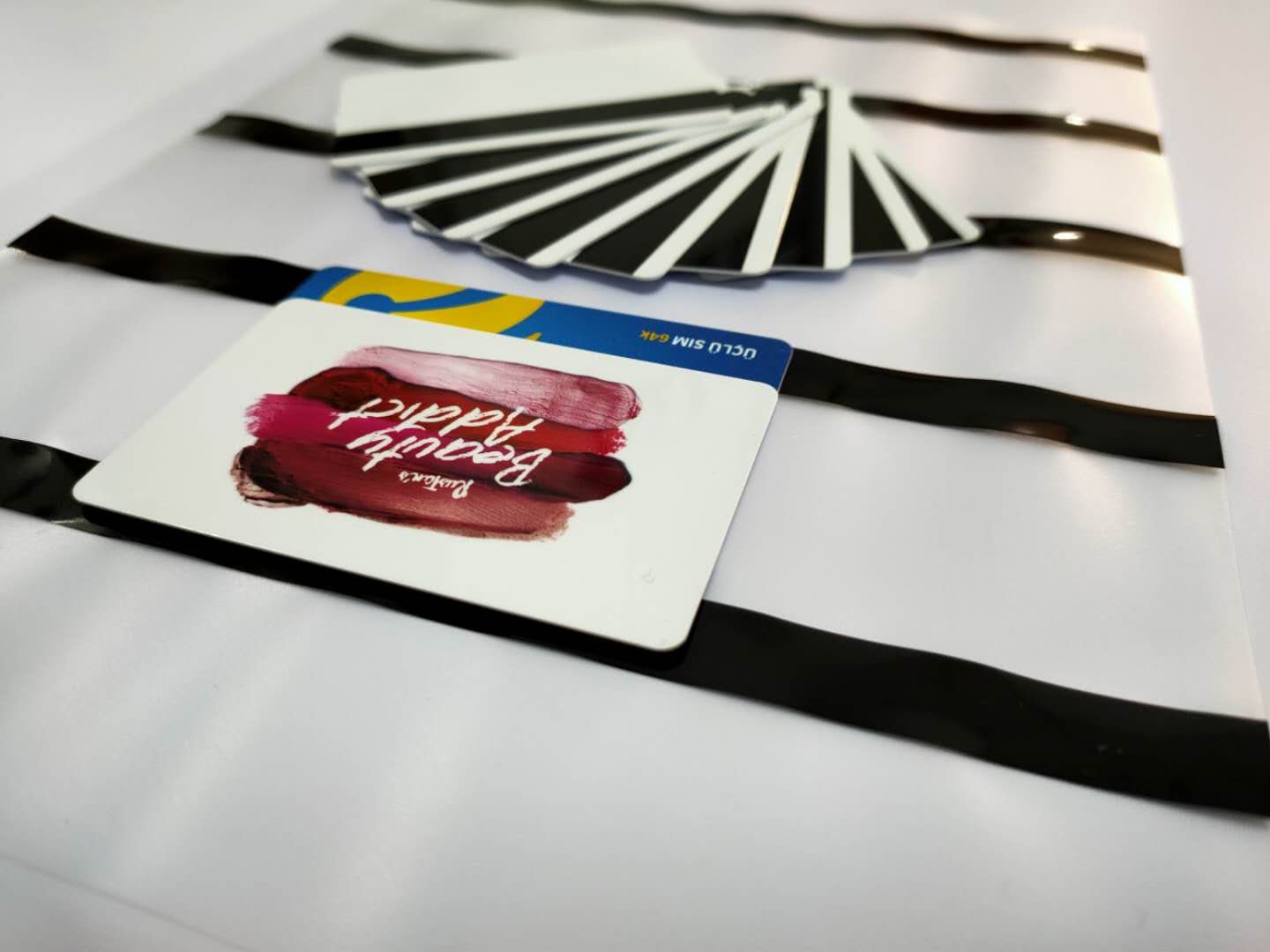

PVC Coated magnetic stripe overlay film is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.

MKarte Material Technology (Tianjin) Limited (hereinafter referred as MMT) has been specializing in supplying all-round material solutions for card production industry worldwide. Our products are widely used in the card body production of such cards as EMV financial card, ID card, telecom cards, IC cards and magnetic stripe cards. Etc. With its own professional R&D, manufacturing and marketing teams, MMT has been always serving its global card industrial customers with the products and services of the best performance/price ratio. Based in Binhai New Area, Tianjin, China, MMT has been serving the card industry for over ten years successfully with its outstanding advaes in its product, price and service. Till now, MMT has already established long-term business cooperation with many high-end customers located in nearly 30 countries including USA, Russia, India, Argentina, Mexico, Israel, Ukraine, Turkey, Chile, Malaysia, etc.

The main products made by MMT include:

1. PVC coated overlay & PVC uncoated overlay for card body lamination
2. PVC inkjet printing sheet (suitable for various inkjet printers, white/gold/silver color/transparent)
3. PVC digital printing sheet (for HP Indigo/Konica Minolta/MGI/FUJI Xerox）
4. PVC core sheet ( for offset/silk screen printing or work as middle core sheet)
5. PC core sheet ( for offset/silk screen printing or work as middle core sheet)
6. PETG core sheet ( for offset/silk screen printing or work as middle core sheet)
7. PC coated overlay & PC uncoated overlay for card body lamination
8. PETG coated overlay & PETG uncoated overlay for card body lamination
9. Coated overlay with magnetic stripe (HiCo/LoCo)
10. Non-lamination inkjet printing sheets (dragon sheet)
11. Card lamination steel plate series (Ultraglossy/Glossy/Matte/Textured)
12. Card lamination cushion pad series

MMT has the update-to-date production facilities, well-proven quality control management system and supply chain management system. With its strict internal cost control and the mature company operation experiences, MMT has been providing the products with the best performance/price ratio to our kind customers.

With its professional marketing and technical support team, we are more professional in serving our customers worldwide in each chain of pre-sale, mid-sale and post-sale stages.

MMT is always ready to shake hands with smart you for win-win cooperation anytime! We are doing all for your better cards!
