| Brand Name : | MK |
| Model Number : | MDP-HP-SS-W |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 450,000 sheets Per week |
| Delivery Time : | 10-15 working days |

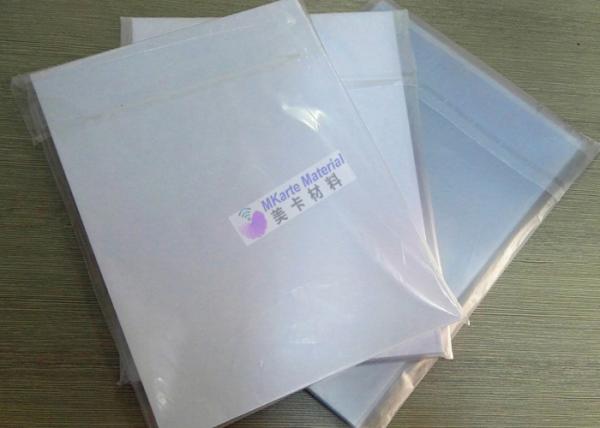

A3 Size HP Indigo With one side Digital Print Coating PVC Sheets
1. Product Introduction of A3 Size HP Indigo With one side Digital Print Coating PVC Sheets
It is suitable for the whole series of HP Indigo printers. It could be printed directly by digital printers with high definition and real color images.
● Specially designed for the whole series of HP Indigo printers.
suitable for 4-color model printer such as S2000, S5600, S7600,
etc.
● It has superior aging resistance performance comparing with other
similar products. After 240h’s aging test (75℃, 95%RH), the peel
strength is no less than 4.5N/cm.
● No crack occurs on the printed images after lamination at high temperature.
2. More Characters of A3 Size HP Indigo With one side Digital Print Coating PVC Sheets
PVC Plastic cards process in general :
1. Print directly to the surface of sheets
2. Hot press laminate with PVC coated overlay films when the ink dries.
3. Punch out cards from the fused materials.
4. Other art-works, such as embossing, hot stamping, hole punching, screen printing etc.
5. Finished cards.
| Normal Thickness | 0.15mm,0.17mm,0.18mm, 0.20mm,0.30mm,0.33mm and other |
| Size | In roll or in sheet , A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Instruction | Can be printed directly by digital printers with high definition images |
| Coating feature | digital print ink coating on one side and lamination glue coating on another side. |
| Packing | 50 or 100 or 200 sheets per bag , 10 bags per paper carton , and the cartons are piled up and firmly fixed on solid plywood pallets |
| Appearance | No crack occurs on the printed images after lamination at high temperature. |
3. Test report of A3 Size HP Indigo With one side Digital Print Coating PVC Sheets
| Product test report | ||||
| Product Name: PVC Digital Printing Sheet | ||||
| Inspected Items | Unit | Inspection Standard | Test Result | |
| Appearance | The color is even, No black impurity spots, No obvious scratch | Meet the requirements | ||
| Length | mm | ±1 | OK | |
| Width | mm | ±1 | OK | |
| Thickness | mm | ±10% | OK | |
| Squareness | mm/m | ≤1 | 0.4 | |
| Density | g/cm3 | 1.42±0.05 | 1.41 | |
| Chromatic aberration | ∆E | ≤1.0 | 0.51 | |
| Pulling Strength | MD | MPa | ≥45 | 47 |
| CD | ≥43 | 43.1 | ||
| Roughness Ra | 4# | ṷ m | 0.7～1.8 | 1.28 |
| 5# | ṷ m | 0.7～1.8 | 0.97 | |
| Roughness Rz | 4# | ṷ m | 4～12 | 7.912 |
| 5# | ṷ m | 4～12 | 6.91 | |
| Surface Tension | 4# | Dynes/cm | ≥34 | 34.5 |
| 5# | ≥34 | 34 | ||
| Heating shrinkage rate | MD | % | ≤-6.0 | -2 |
| CD | ≤+2.2 | 0 | ||
| Whiteness | 96.2 | |||
| Transmittance | % | 5.5 | ||
| Vicat softening point | ℃ | 78±2 | 78.9 | |
|
|
