PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose
PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose is used for lamination with partially or less-printed PVC sheets . With the right lamination parameter setting , It can also realize high adhesion without color change and deformation.

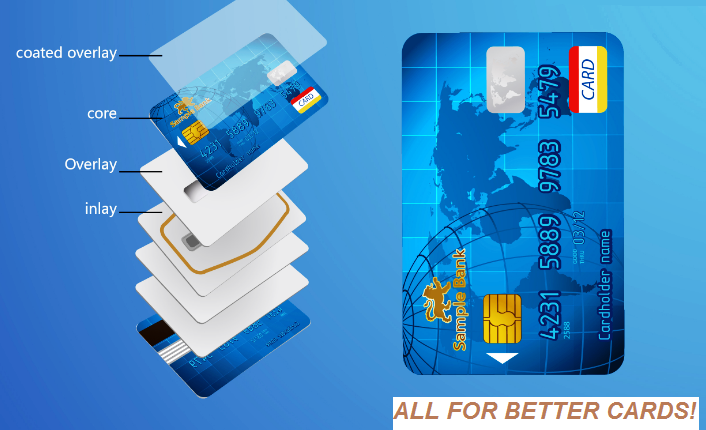

Overlay without a layer of thermal glue on the surface .It is mainly used to make the external film of credit cards and other cards.
| 1. Descriptions and Characteristics for PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose |
It is used for lamination with partially or less-printed PVC sheets . With the right lamination parameter setting , It can also realize high adhesion , no color change and deformation.
Overlay without a layer of thermal glue on the surface .It is mainly used to make the external film of credit cards and other cards.
Characteristics:
1. Excellent stable quality
2. Special formulation according to each client's requirement
3. Exact sheet size cutting and thickness control
4. Low dust
5. Low static
6. Adjustable Vicat degree
7. Less than15 days Short Lead Time
8. Perfect packaging for transportation
9. Best after sell service
| Item | Unit | Value | |
| Density | g/cm3 | 1.26 ±0.04 | |
| Tensile Strength | Horizontal | MPa | ≥35 |
| Vertical | ≥40 | ||
| Vicat 5kg | ℃ | 72±2 | |
| 2. Techincal Parameters for PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose |
Technical Parameters:
| Item | Parameters |
| Vicat softening point | 72±2 ℃ |
| Heating Shrinkage ratio | ≤ 10 % |
| Tensile Strength | ≥ 40 MPa |
| Normal thickness in mm | 0.04 , 0.05,0.06,0.08,0.10 |
| Peel Strength (90°, 300mm/min) | ≥6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable ink | offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink |
1. Size: Sheet size or Roll size , A4 , A3 or as per customer
requirements
2.Thickness range: 40-100 Micron
3. Color : transparent with one-side glue coating,Transparent (Clear)
4.Roughness: Both sides matte
5.Vicat point: 72+2 ℃ (ISO306B50)
6. Package method : by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements
7. Storage condition: Sealed , moisture-proof , room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .
* Customers' design can be accepted.
| 3. Testing Lab for PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose |

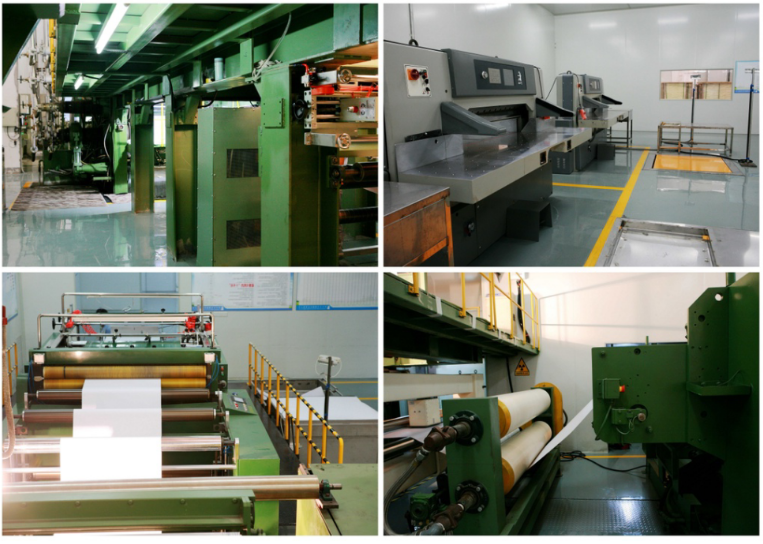

| 4. Production Equipments for PVC Uncoated Overlay or Film in Sheet or by Roll for PVC Card Body Lamination Purpose |
|
|
