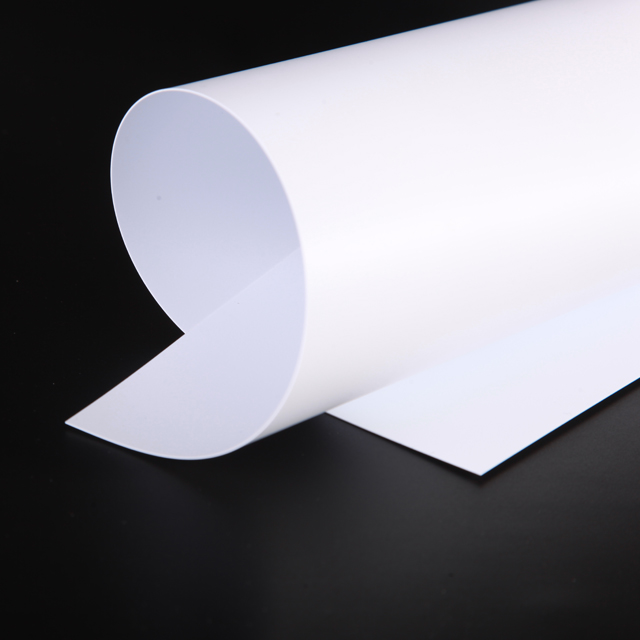

PVC Core Sheet White for offset printing ,offset core sheet for Plastic Card Making
1. PVC Core Sheet White for offset printing - Product Technical Specification
Offset printing sheets MOP series are designed for offset printer
and silk screen printer use. They can also be used as non-printed
middle core sheet. They are massively used by many card factories
worldwide.
1) Suitable for the whole series of offset printer and silk screen
printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after
lamination.
4) No crack occurs on the printed images after lamination at high temperature.

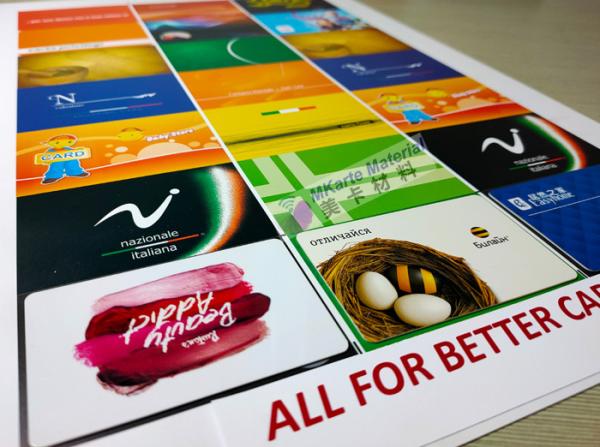

2. PVC Core Sheet White for offset printing - Application
3. PVC Core Sheet White for offset printing - Parameters:
1). Thickness: 0.12-0.76mm
2). Color: Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)
3). Suitable printer models: The whole series of offset printer and
silk-screen printers
4). Package method: 100-200 sheets per PE bag, all the bags are
firmly piled up and fixed on the solid plywood pallets.
5). Storage condition: Sealed, moisture-proof, room temperature under 40℃
4. PVC Core Sheet White for offset printing - Product Features:
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
| Size | in sheet A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Thickness | 0.12-0.76mm (tolerance +/-5%) |
| Color | Milk White (MOP-W-NF model)/Snow White (MOP-W-F model) |
| Coating description | digital ink coating on one side and lamination glue coating on another side. |
| Package method | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight |
5. PVC Core Sheet White for offset printing -Characteristics:
1).Excellent stable quality
2).Special fomulation according to each client's requirement
3).Exact sheet size cutting and thickness control
4).Low dust
5).Surface tension can over 40 Dyne
6).Low static easy for sheet feeding
7).Smooth roughness
8).Adjustable VICAT degree
9).Adjustable Opaque degree
10).Less than15 days Short Lead Time
11).Perfect packaging for transportation
6. PVC Core Sheet White for offset printing - Packing of MGI Digital Printable PVC Sheets
|
|
