A4 Size Slight Matte Finish Laminated Steel Plate For Lamination
1. A4 Size Slight Matte Finish Laminated Steel Plate For Lamination- Introduction
Slight Matte Finish Lamination Steel Plate MSP-M have matte finish surfaces on both sides and are designed for laminating plastic card sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination.
Key Features:

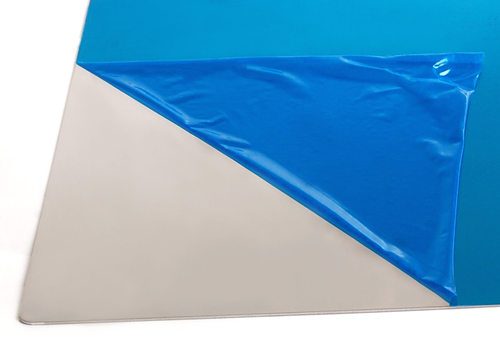

1). The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2). There are no scratches, dents, stripes shadows and dust on plate surfaces.
3). The edges are smooth and deburred with the round curved corners.
4). Two sides are made matte in the same quality.
5). After lamination, the plates are not sticking to the laminated plastic sheets.
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm
Surface roughness value range: 0.3-1.5um
Slight Matte plate (Ra0.3μm-0.5um)
Heavy Matte plate (Ra1.3-1.5um)
Glossy plate surface glossiness: over 800 GU at 20° (both sides)
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
2. A4 Size Slight Matte Finish Laminated Steel Plate For Lamination- Parameters
Technical Parameters:
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate thicknes | 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm) |
| Dimension tolerance | ±1mm for length and width. |
| Surface roughness | Slight matte finish (Ra range 0.3-0.5μm) |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Packaging box | solid plywood carton with soft cushion protection inside |
| surface roughtness Ra value | 0.3-0.5μm |
| Thickness range | 600 or 800 micron |
| Dimension tolerance | ±1mm for length and width |
| Edge state | smooth and deburred with the round curved corners |
3. A4 Size Slight Matte Finish Laminated Steel Plate For Lamination- Application
Detailed Product Description:
1). Glossy finish, matte finish, mirror finish,etc.
2). Size & thickness on request
3). High-grade stainless stee
Features:
1). Card laminator Accessories
2). 800 Micron thickness
3). Characteristic: heat-resistant, high elasticity
There are five kinds of steel plates:
1).Glossy steel plates
normal mirror effect,for planographic code and inkjet code.
2).Matte steel plates
on te surface there are tiny lights,thin and lubricious,for planographic code and inkjet code.
3).Coarse matte steel
Platoon lights on the surface,too coarse for planographic code.
4).Moderate coarse matte steel plates
no lights on the surface,moderate coarse.
5).Fine matte steel plates
no lights on the surface, relatively thin and lubricious, for paleographic code and
inkjet code.
Size:100mm*120mm;210mm*297mm;210mm*320mm;325mm*480mm;340mm*500mm
Thickness:0.5mm, 0.6mm,0.7mm, 0.8mm, 1mm
4. A4 Size Slight Matte Finish Laminated Steel Plate For Lamination- Packing
Packing:Wood Tree Texture Double Side Laminating Steel Plate for Card Making / Stainless Steel Plate Press on Cards in standard export wooden case
|
|
