PC Overlay or Polycarbonate Thin Film / Sheet Without Coating for PC card body laminaiton
PC Overlay or Polycarbonate Thin Film / Sheet Without Coating (Model: MUO-PC) is specially produced for PC card body lamination with printed sheets. It has such good features like strong lamination adhesion, excellent tensile strength, wear resistance and high temperature resistance. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.
1.PC Overlay or Polycarbonate Thin Film / Sheet Without Coating - Introduction
Brief Introduction:
PC Overlay or Polycarbonate Thin Film / Sheet Without Coating is a new developed environment friendly product which could get excellent peel strength at high temperature. It provides superior aging resistance performance to other similar products, no color change and deformation after lamination.
Characteristics:
● Work well at high temperature,no color change with fluorescent ink.
● Abrasion resistant , prolong the life of cards.
● Environment friendly, no solvent or gas discharged.
| Item | Specification | Test Method |
| Thickness | 40-100um | |
| Thickness tolerance | ＞0.5±6um ≤0.5±4um | |
| Density | 1.2±0.05 g/cm3 | ASTM D792 |
| Surface tension(front) | ≥38Dynes/cm | ASTM D1922 |
| Surface tension(back) | ≥38Dynes/cm | ASTM D1922 |
| Shrinkage | ＜1.0 | ASTM D1204 |
| Vicat | 147±20C | ASTM D1525 |
| Tensile strength | ≥50 N/mm2 | ASTM D1922 |
| Surface roughness | 0.5um-1.8um |
2.PC Overlay or Polycarbonate Thin Film / Sheet Without Coating - Parameters
1). Size: in sheet or reel, A4, A3 or as per customer requirements
2). Normal thickness in mm: 0.04,0.05,0.06,0.08,0.10
3). Color: transparent without coating on surface.
4). Package method: in reel or 500 sheets per bag/4 bags per paper carton, or as per customer requirements.
5). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.
6). Laser engraving performance: cannot be laser engraved.
| Item | Unit | Value | |
| Density | g/cm3 | 1.20 ±0.05 | |
| Tensile Strength | Horizontal | MPa | ≥50 |
| Vertical | ≥50 | ||
| Vicat | ℃ | 147±2 | |
| Surface Dyne | dynes/cm | ≥38 | |
3.PC Overlay or Polycarbonate Thin Film / Sheet Without Coating - Application
such as identity card,driving card, passport etc.
| Item | Parameters | |
| Vicat (℃) | 147±2 | |
| Shrinkage | MD/TD | ＜1.0 |
| Tensile Strength (MPa) | MD | ≥50 |
| TD | ≥50 | |
| Roughness(μm) | Ra | 0.58, 1.5-2.1 |
| Ra | 3.45 | |
| Thickness(mm) | 0.04-0.1 | |
◆Laminating Condition:
| Laminating Unit | Temp(℃) | Pressure(MPa) | Time (min) |
| Heat Laminating | 140~155 | ≥6 | 25 |
| Cool Laminating | ≤25 | ≥6 | 15 |

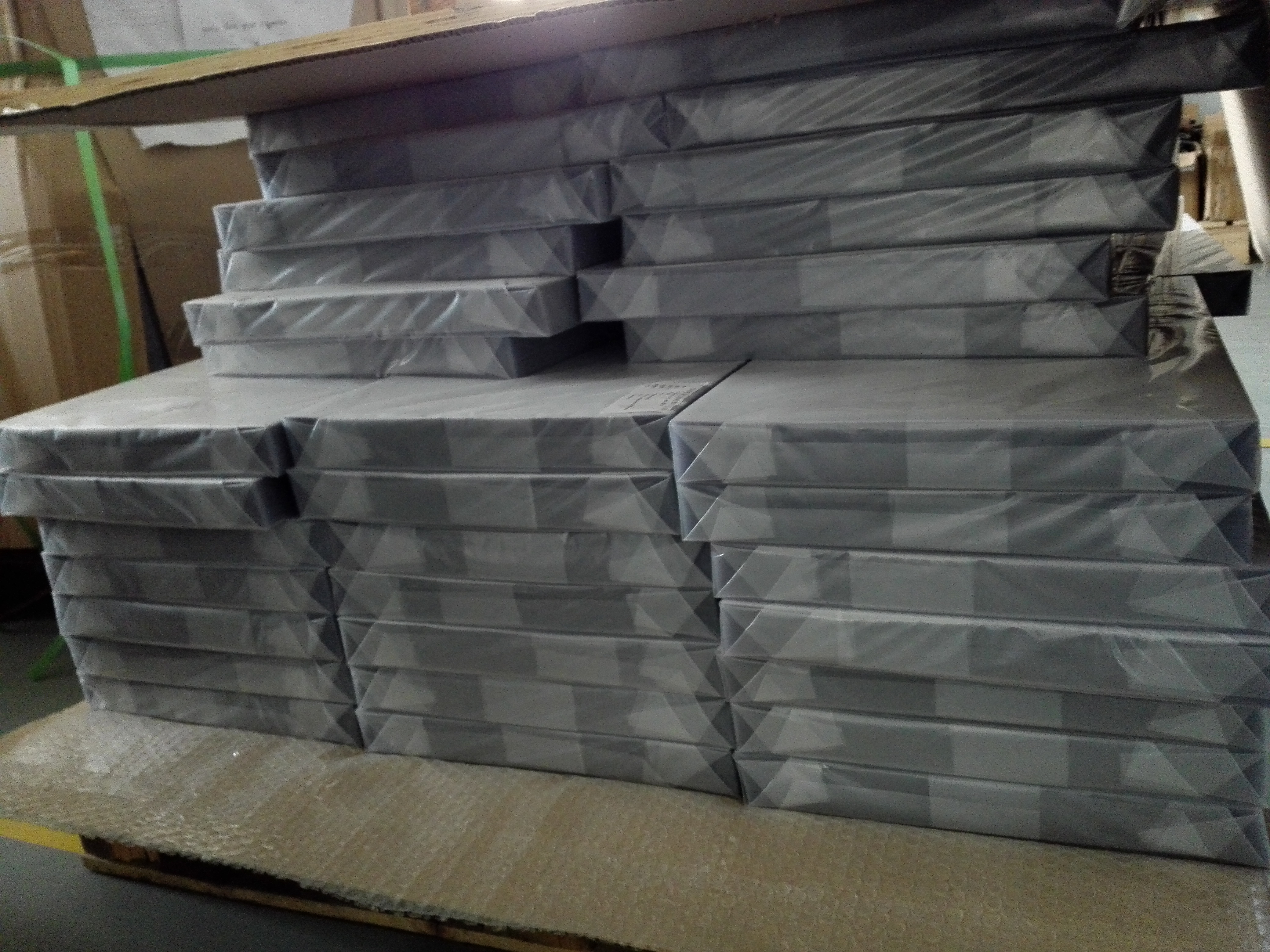

4.PC Overlay or Polycarbonate Thin Film / Sheet Without Coating - Packing
◆Packing:
Outer:Carton Inner:PE bag
◆Storage:
Keep package sealed and moisture-proof, room temperature under 40℃
Keep horizontally, avoid oppress heavily and direct sun light.
Stacking height should not exceed one meter.
Shelf life: Two year.
Storage conditions:
Ideal storage conditions under 40℃, Ideal RH 40%. Should not be stored in direct sunlight and avoid major thermal fluctuation, store in original packing. Film should be conditioned a minimum of 24 hours at ambient room temperature.
Recommended use of material within one year of production date.
|
|
