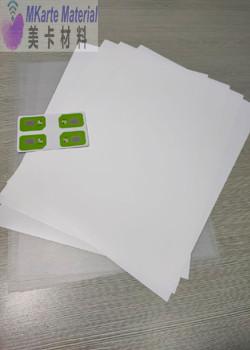

PC Card Base , Core Sheet or Polycarbonate PC base sheet for Contactless PC card Prelam or INLAY sheet
1.PC Core Sheet or Polycarbonate PC base sheet - Introduction
PC Core Sheet or Polycarbonate PC base sheet (Model: MCS-PC-INLAY) is specially designed for INLAY sheet production of Contactless or RFID PC Card. It is featuring lower vicat softening point, which can provide good protection on chips inside during the process of laminator grading lamination process. It is known as the high-quality PC sheet for various contactless or RFID PC cards.
Comparing with other types of plastic core sheets for card body production, it excels in outstanding optical clarity, printability, impact strength and dimensional stability. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.
Features:
1).Excellent strength and wear-resisting
2).High temperature and low temperate resistance;
3).Perfect application for laser Engraving
4).Environment-friendly material
5).Longer service life
2.PC Core Sheet or Polycarbonate PC base sheet - Parameters
It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection.
| Item | PC Core Sheet |
| Color | White, Transparent or Black |
| Thickness Range(mm) | 0.05-1.0 |
| Vicat point ℃ | 85-90 |
| Tensile strength | ≥50 Mpa |
| Surface | Both sides matt |
| Density | 1.3 |
| Transparency | ≤5 |
| Heat shrink | ≤0.5 |
| Surface roughness | ＜1.5 |
| Surface tension dynes/cm | ≥38 |
PC Card Core with excellent strength and wear resistance, high temperature resistance, perfect image of laser etching technology support.Apply to identity cards with anti-fake requirements, driving license, passport etc.
Item | Unit | Value | |
Density | g/cm3 | 1.30 ±0.05 | |
Tensile Strength | Horizontal | MPa | ≥50 |
Vertical | ≥50 | ||
Vicat | ℃ | 85-90 | |
Surface Dyne | dynes/cm | ≥38 | |
Thickness range | mm | 0.05-1.0mm | |
3.Low Vicat PC core sheet or base sheet - Application
PC Core Sheet or Polycarbonate PC base sheet (Model MCS-PC-INLAY) is specially designed for high end PC card body production.
Comparing with other types of plastic core sheets for card body production, it excels in outstanding optical clarity, printability, impact strength and dimensional stability. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.
PC sheet is known as the new reliable material for PC card body production. It has such features as high vicat point and can be used for laser engraving. The PC sheet is perfect for making ID card, E-Passport etc.
Card-making method
1). Print the patterns directly to the material
2). Laminate with overlay
3). Punching
4). Other art-work
| Product model | Product name | Thickness Range mm | Color | Vicat ℃ | dynes/cm | Apparent density g/cm3 | Peel strength N/cm | Main application |
| PC | PC core | 0.05- | White Black Transparent | 85-90 | ≥38 | 1.3+/-0.05 | / | It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection. |
4.PC Core Sheet or Polycarbonate PC base sheet - Packing
|
|
