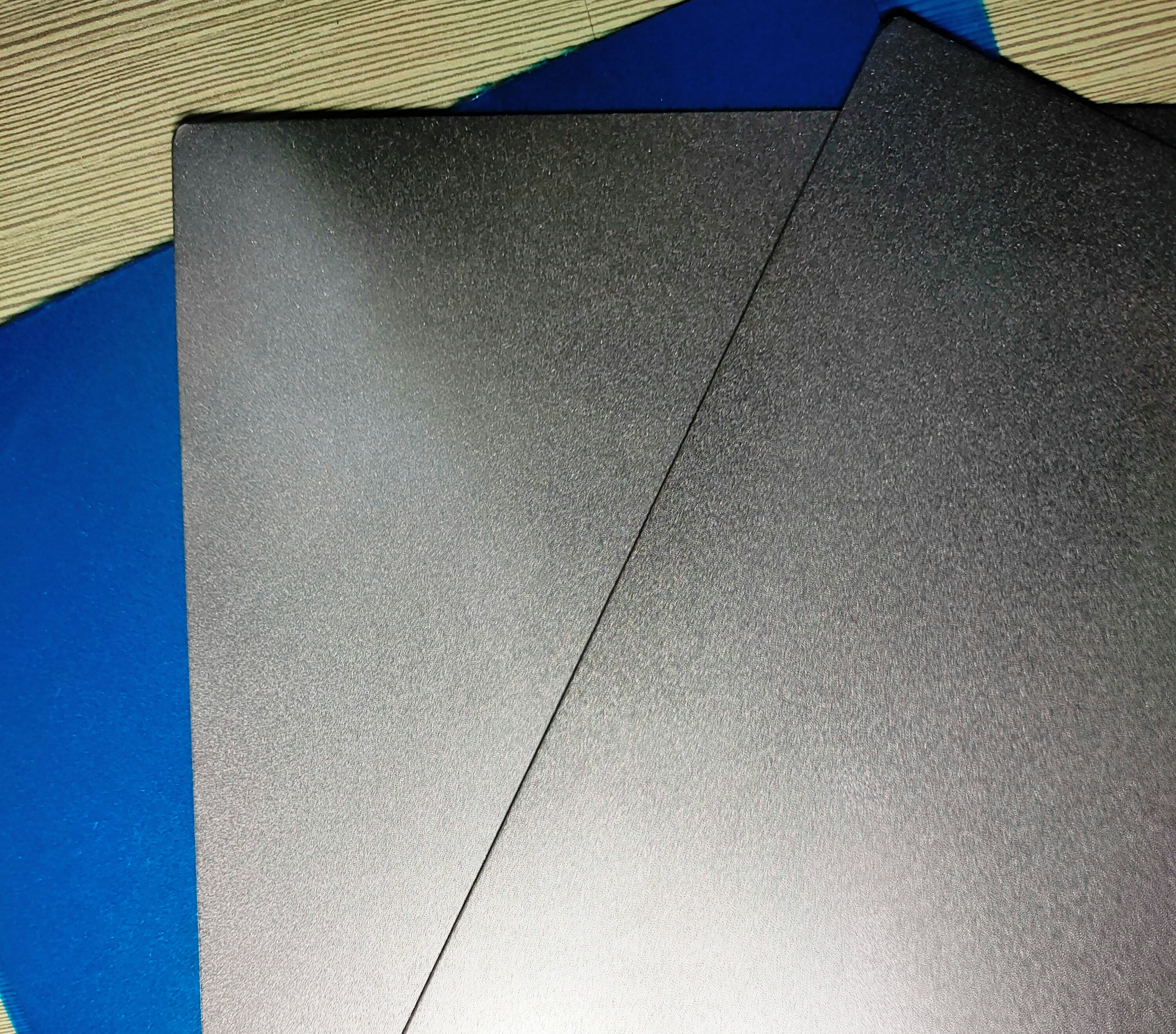

Matte Heavy Grain Surface Aluminum Laminated Steel Plate For PVC Prelam Inlay Laminating
Production Specification
1.Matte Heavy Grain Surface Aluminum Laminated Steel Plate Introduction
Grain Finish Aluminum Plate - Card Laminated Steel Plates are used for laminating plastic card sheets in the card laminator. It can ensure perfect plastic card surface finish after lamination . Our plates are being widely used by many card factories in both China and foreign countries worldwide.
And we also call the plate as Heavy / Middle / Slight Grained laminating steel plate, Grained steel plate for card laminator, Grained card finish lamination plate .
2.Matte Heavy Grain Surface Aluminum Laminated Steel Plate Specification
Technical Parameters :
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm / m
Surface roughness value range: 2.5 - 6.0 μm
Slight Grain Steel plate ( Ra 2.5 - 3.0 μm )
Heavy Grain Aluminum plate ( Ra 5.5- 6.0 μm )
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
Key Features:
1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces . There is no glue left after the foil is removed before the plate is used at the first time .
2. Two sides are made slight grain in the same quality .
3. There are no scratches , dents, stripes shadows and dust on plate surfaces .
4. The edges are smooth and deburred with the round curved corners .
5. After lamination , the plates are not sticking to the laminated plastic sheets .
Technical Parameters:
| Surface roughness value | Ra2.5- 6.0 um |
| PlateThickness | 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm) |
| Plate size | in sheet, A3, A4 or custom-made size |
| Plate flatness level | maximum 1 mm / m |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Plate Edge | smooth and deburred with the round curved corners |
| Packaging box | Strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |

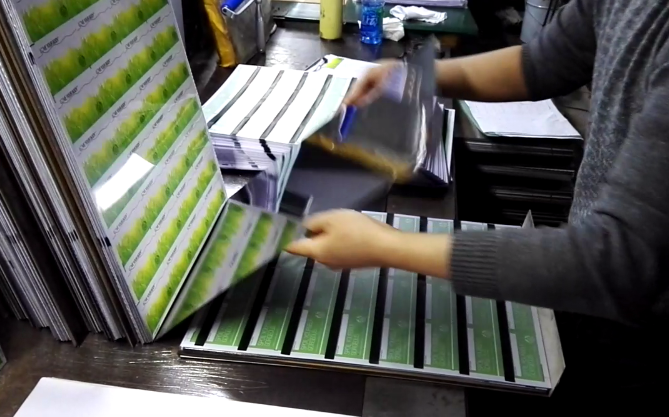

3.Application of Matte Heavy Grain Surface Aluminum Laminated Steel Plate
* Customer design can be accept.
4.Packing of Matte Heavy Grain Surface Aluminum Laminated Steel Plate
|
|
