| Brand Name : | MK |
| Model Number : | MOP-W |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 10 million square meters per month |
| Delivery Time : | 10-15 working days |

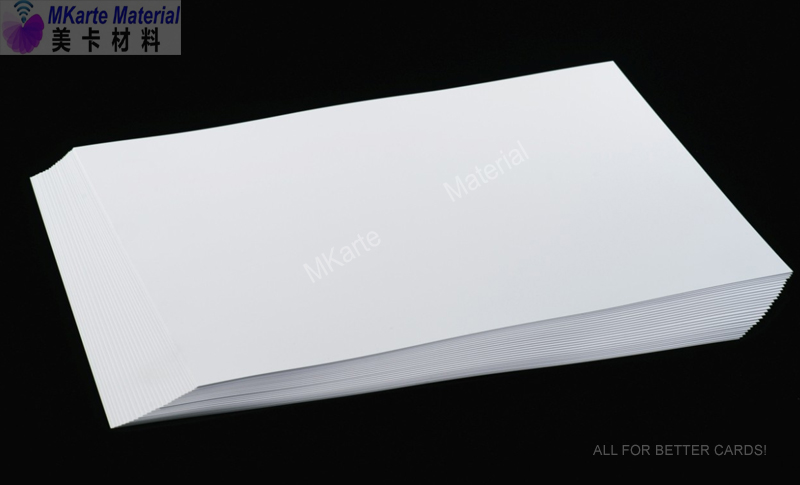

0.76 mm PVC Core Sheet Can Be Offset Printing Or Silk Screen Printing
1.Introduction of 0.76 mm PVC Core Sheet Can Be Offset Printing Or Silk Screen Printing

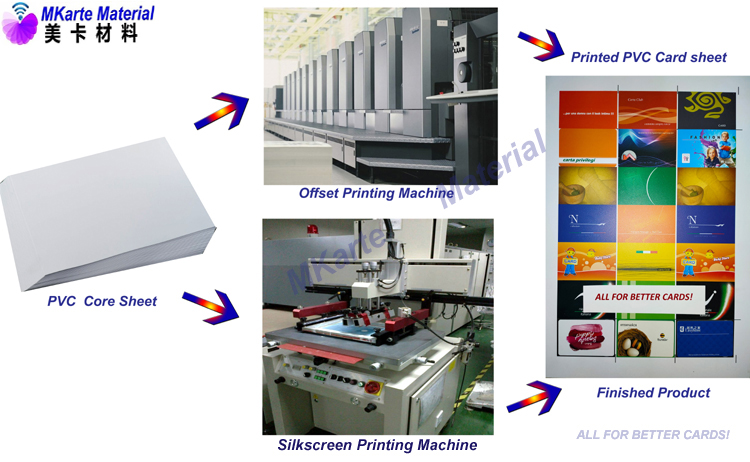

Offset printing sheets MOP series are designed for offset printer
and silk screen printer use. They can also be used as non-printed
middle core sheet. They are massively used by many card factories
worldwide.
1) Suitable for the whole series of offset printer and silk screen
printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after
lamination.
4) No crack occurs on the printed images after lamination at high temperature.
2. Application of 0.76 mm PVC Core Sheet Can Be Offset Printing Or Silk Screen Printing
This kind of ordinary PVC Core sheet can be used for laminating, non-laminating, printing, coating and
cutting, such as membership cards and calendars.
3. Specification of 0.76 mm PVC Core Sheet Can Be Offset Printing Or Silk Screen Printing
1). Thickness: 0.12-0.76mm
2). Color: Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)
3). Suitable printer models: The whole series of offset printer and
silk-screen printers
4). Package method: 100-200 sheets per PE bag, all the bags are
firmly piled up and fixed on the solid plywood pallets.
5). Storage condition: Sealed, moisture-proof, room temperature under 40℃
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
| Size | in sheet A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Thickness | 0.12-0.76mm (tolerance +/-5%) |
| Color | Milk White (MOP-W-NF model)/Snow White (MOP-W-F model) |
| Coating description | digital ink coating on one side and lamination glue coating on another side. |
| Package method | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight |
4.Product Advantage of 0.76 mm PVC Core Sheet Can Be Offset Printing Or Silk Screen Printing
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
6. Wide Usage
It can be laminated with uncoated overlay film after uv offset priting or screen printing.
Also as below advantage:
1).Excellent stable quality
2).Special fomulation according to each client's requirement
3).Exact sheet size cutting and thickness control
4).Low dust
5).Surface tension can over 40 Dyne
6).Low static easy for sheet feeding
7).Smooth roughness
8).Adjustable VICAT degree
9).Adjustable Opaque degree
10).Less than15 days Short Lead Time
11).Perfect packaging for transportation
5. Packing of 0.76 mm PVC Core Sheet Can Be Offset Printing Or Silk Screen Printing
50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
|
|
