6.0 N CM PVC Coated Overlay For Offset PVC Sheet Printing With Yellowing Resistance
1. Introduction of 6.0 N CM PVC Coated Overlay For Offset PVC Sheet Printing With Yellowing Resistance
PVC Coated Overlay Film MCO-W ( strong adhesion level )
Which also can be used as for the offset PVC sheet printing . We also call the PVC coated overlay as PVC coating film for card body lamination , Coated film for card production , glue coated film for card , glue coating overlay for plastic card , card plastic material , card body plastic material.
Which also can be used as for the offset PVC sheet printing .
PVC Strong Coated Overlay Film with Strong initial viscous force , slow decline , yellowing resistance ,
deformating resistance after laminating .The surface is smooth , and easy to use. Mainly used for protective
film of bank card , social security card , IC card , RF card and other card with higher requirements .
PVC Coated Overlay MCO-W model is suitable for laminating with most
PVC sheets printed by various printers . It features high adhesion
, no color change and deformation .
It is applicable to almost all sheets printed by various ink . It
features excellent peeling strength and long aging time .
2.Specification of 6.0 N CM PVC Coated Overlay For Offset PVC Sheet Printing With Yellowing Resistance
3. Color : transparent with one-side glue coating
4. Package method : by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements
5. Storage condition: Sealed , moisture-proof , room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .
PVC Overlay Coatings
Overlay films
Overlay films ensure high clarity and superior graphic visibility
for your graphics. Our overlay films deliver exceptional
performance: gauge control, color consistency (before and after
lamination), and bond strength that exceeds ISO standards.
Coated films
Adhesion to UV, oxidative, digital or silk screen inks
Various adhesive coatings available
Themoprintable and laser engravable films
various vicat (temperature resistant) films
Technical Parameters:
3. Color : transparent with one-side glue coating
4. Package method : by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements
5. Storage condition: Sealed , moisture-proof , room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .
| Item | Unit | Value | |
| Density | g/cm3 | 1.26 ±0.04 | |
| Tensile Strength | Horizontal | MPa | ≥35 |
| Vertical | ≥40 | ||
| Vicat 5kg | ℃ | 72±2 | |
3. Applications of 6.0 N CM PVC Coated Overlay For Offset PVC Sheet Printing With Yellowing Resistance
| Item | Parameters |
| Vicat softening point | 72±2 ℃ |
| Heating Shrinkage ratio | ≤ 10 % |
| Tensile Strength | ≥ 40 MPa |
| Normal thickness in mm | 0.04 , 0.05,0.06,0.08,0.10 |
| Peel Strength (90°, 300mm/min) | ≥ 6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable ink | offset and silk screen printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink |
* Customer design can be accept.

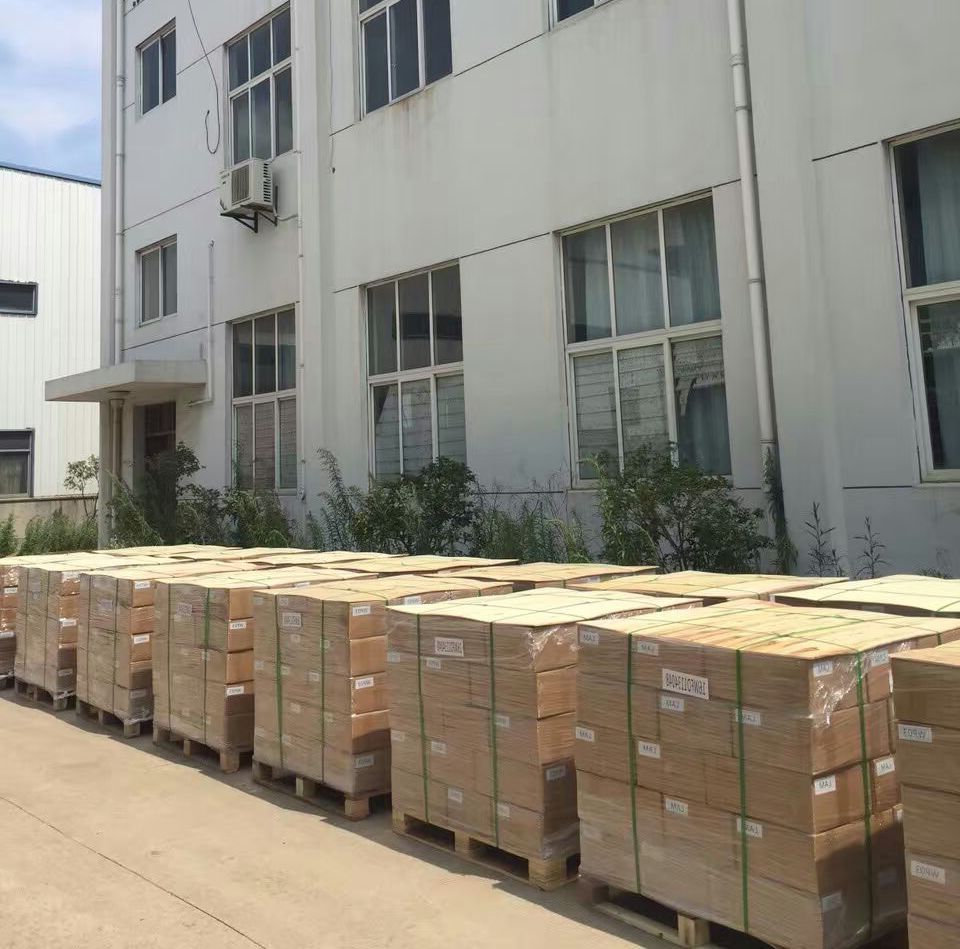

4. Packing of 6.0 N CM PVC Coated Overlay For Offset PVC Sheet Printing With Yellowing Resistance
By reel or 500 sheets per bag / 4-8 bags per paper carton , as per customer requirements . All the cartons are firmly piled up and fixed on the solid plywood pallet
|
|
