0.08mm PVC Coated Overlay High Stickiness Glue Coating For Card Sheet Inkjet Printing Use
1. Introduction of 0.08mm PVC Coated Overlay High Stickiness Glue Coating For Card Sheet Inkjet Printing Use
PVC Coated Overlay Film MCO-W ( strong adhesion level )
We also call the PVC coated overlay as PVC coating film for card body lamination , Coated film for card production , glue coated film for card , glue coating overlay for plastic card , card plastic material , card body plastic material
Which also can be used as for the offset PVC sheet printing .
High Stickness Glue coating PVC Coated Overlay for Inkjet Print is developed specially for Inkjet printer Ink. It’s suitable for laminating with the sheets which printed by whole series of Inkjet presses. It provides excellent peel strength and no deformation or color change after lamination.
It is applicable to almost all sheets printed by various ink . It features excellent peeling strength and long aging time .
PVC Strong Coated Overlay Film with Strong initial viscous force , slow decline , yellowing resistance ,
deformating resistance after laminating .The surface is smooth , and easy to use.
2. Specification of 0.08mm PVC Coated Overlay High Stickiness Glue Coating For Card Sheet Inkjet Printing Use
● Suitable for lamination with Inkjet printer Ink, with excellent peel strength.
● Abrasion resistant , prolong the life of cards.
● Environment friendly in the card making process, no solvent or gas discharges.
3. Color : transparent with one-side glue coating
4. Package method : by reel or 500 sheets per bag / 4-8 bags per paper carton , or as per customer requirements
5. Storage condition: Sealed , moisture-proof , room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight .
Technical Parameters
| Item | Parameters | |
| Surface | Clean and flatness | |
| Dimensional Tolerance (mm) | ±1 | |
| Angle Cut Tolerance (mm) | ±1 | |
| Diagonal Difference (mm) | ≤1 | |
| Thickness Tolerance (mm) | ±10% | |
| Vicat (℃) | 72±2 | |
| Shrinkage | MD | ≥ - 40% |
| TD | ≤15% | |
| Tensile Strength (MPa) | MD | ≥35 |
| TD | ≥35 | |
* Customer design can be accept.
3.High Stickness Glue coating PVC Coated Overlay for Inkjet Print - Laminating Condition
| Laminating Unit | Temp(℃) | Pressure(MPa) | Time (min) |
| Heat Laminating | 110~130 | ≥8 | 20 |
| Cool Laminating | ≤20 | ≥8 | 20 |
PVC Coated Overlay MCO-W model is suitable for laminating with most PVC sheets printed by various printers . It features high adhesion , no color change and deformation . Mainly used for protective film of bank card , social security card , IC card , RF card and other card with higher requirements .
| Item | Unit | Value | |
| Density | g/cm3 | 1.26 ±0.04 | |
| Tensile Strength | Horizontal | MPa | ≥35 |
| Vertical | ≥40 | ||
| Vicat 5kg | ℃ | 72±2 | |

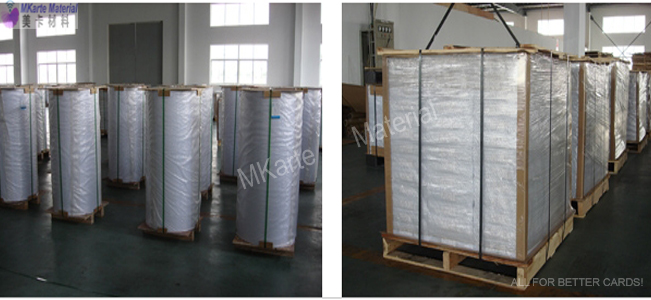

4. Packing of 0.08mm PVC Coated Overlay High Stickiness Glue Coating For Card Sheet Inkjet Printing Use
Outer:Carton Inner:PE bag
5. Storage of 0.08mm PVC Coated Overlay High Stickiness Glue Coating For Card Sheet Inkjet Printing Use
Keep package sealed and moisture-proof, room temperature between 5~30℃.
Keep horizontally, avoid oppress heavily and direct sun light.
Stacking height should not exceed one meter.
Shelf life: One year.
|
|
