Laminated PVC Magnetic Stripe Coated Overlay For Plastic Card Production
1. Product Introduction of Laminated 0.05mm HICO PVC Magnetic Stripe Coated Overlay
Laminated 0.05mm HICO PVC Magnetic Stripe Coated Overlay is applied with standard magnetic stripe. It applies the high-quality magnetic stripe made by a famous brand - LUCKY China. This can be directly laminated with the printing sheets in the card laminator before punched into standard magnetic card. It features high adhesion, no color change and deformation with long aging life after the process of lamination.
Production method: cover the printed plastic sheets and then laminate together.
Technical Notice :
In manufacturing process, it can be directly laminated with PVC printing sheet, which will simplify the fabrication process and save time, and also the product's adhesive strength is high.
2. Product Specification of Laminated 0.05mm HICO PVC Magnetic Stripe Coated Overlay
1).Size: in roll or in sheet, 210*297mm, 297*480mm or as customized
2). Coated overlay thickness range in mm: 0.04,0.05,0.06,0.08,0.10
3). Magnetic stripe feature: HICO/LOCO, standard width 12.7mm,
black color, Peelable transfer model, Brand: LUCKY
4). Size tolerance: +/-0.5 mm in length and width, +/-5% in
thickness.
5). Color : transparent with one-side glue coating
6). Length and width: in sheet, 210*297 mm ( A4 ) , 295*480 mm ( A3
) or custom-made size (size tolerance: ±1mm)
7). Package method: 500 sheets a bag, 50 bags one carton , packed in Pallets
8). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.
Specifications:
| Product name | Laminated 0.05mm HICO PVC Magnetic Stripe Coated Overlay |
| Common size | A4 (210*297mm), 310x480mm (A3, customized ) |
| Thickness | 0.04mm -1.0 mm |
| Appearance | transparent with glue coating on one side |
| Coated | glue on back |
| Laminating temperature | 110-150℃ |
| Storage | -10~35℃, sealed, moisture-proof |
| Shelf life | about 2 years |
| Packing method | 100pcs/bag, 4000pcs/carton or as per customer's requirement |
The technical data:
| Model number | MCO-MS |
| Thickness | 0.04 mm,0.05mm,0.06mm ,0.08mm ,0.10mm |
| Common Size | Sheet size or Roll size, any size as your requirement |
| Color | Clear (Transparent) |
| Glue Coated | Yes |
| Application | Magnetic strip Card Making |
| Type | Heat press |
| Advantage | Waterproof, Moistureproof, Customized layout |
| Packaging method | By standard export carton and packed in strong plywood pallet with proper soft protection material inside, suitable for long distance for sea or air transport |
3. Product Application of Laminated 0.05mm HICO PVC Magnetic Stripe Coated Overlay

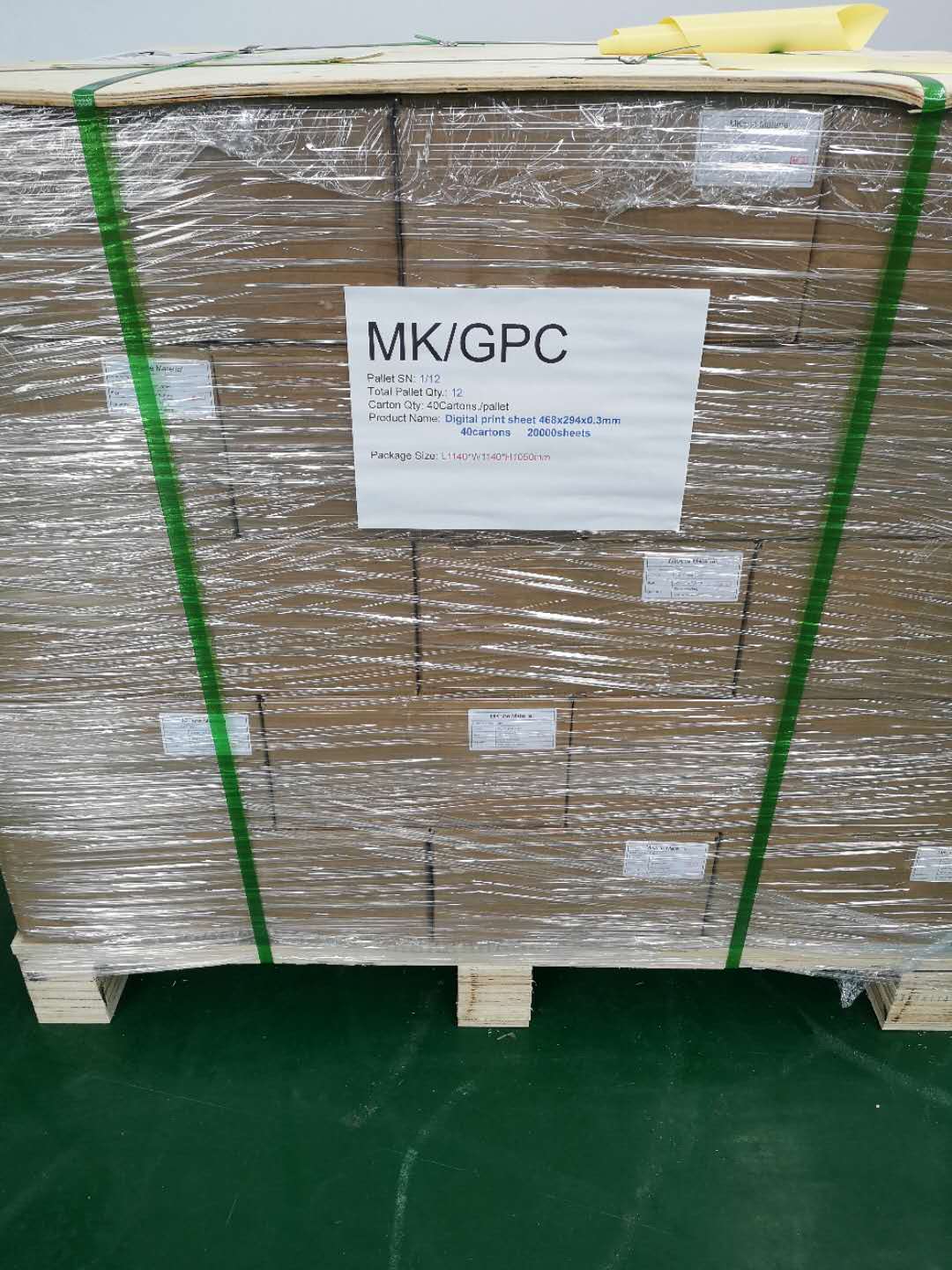

4. Packing of Laminated 0.05mm HICO PVC Magnetic Stripe Coated Overlay
In standard export carton and all the cartons are packed in plywood pallet
|
|
