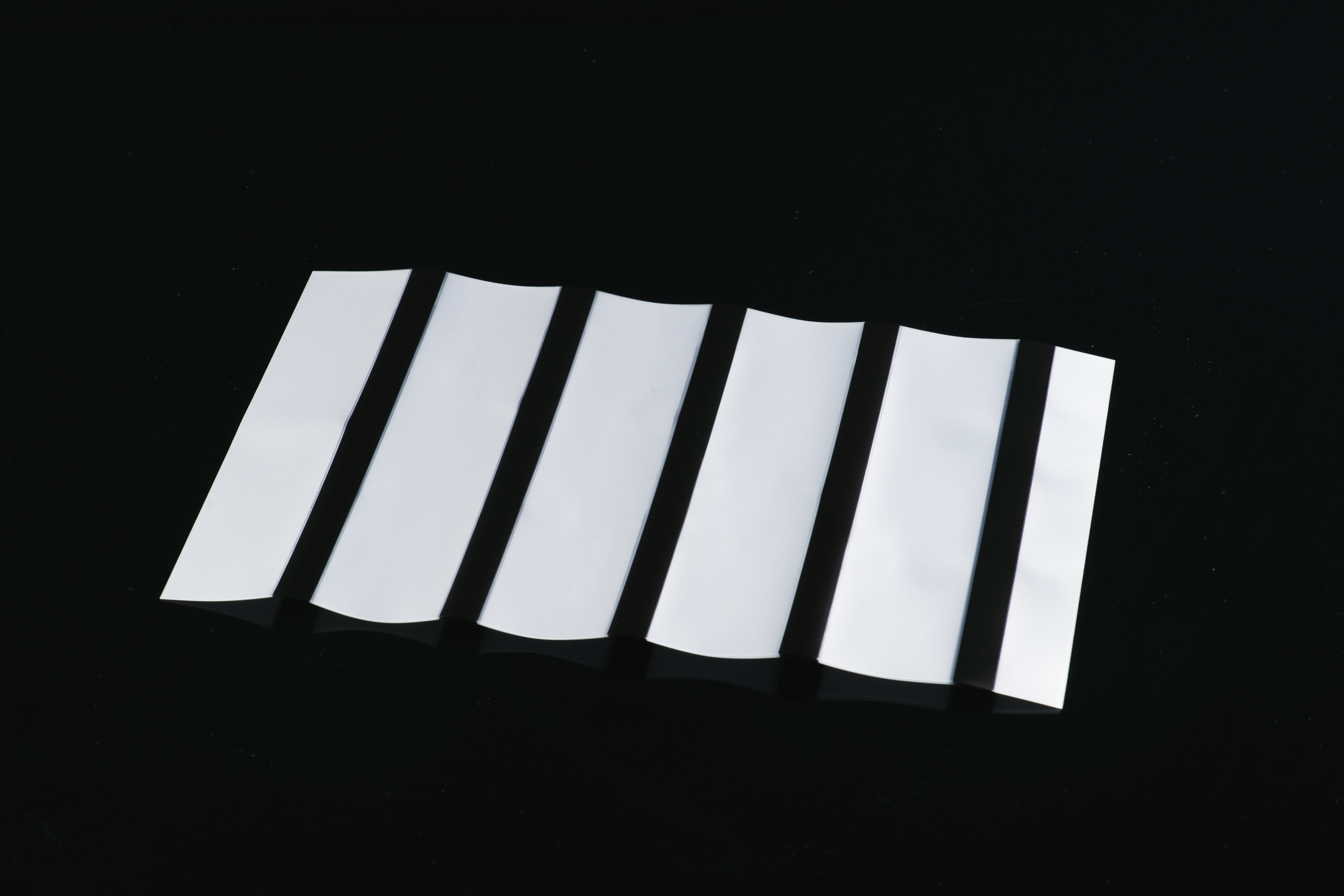

Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film

1.Introduction of Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film

Product Description

Coated overlay with magnetic strip hico 2750 oe, used for card making and laminating ,one side is with magnetic strip,another side for laminating.

1.It has strong adhesive effect,

2. it apply to most of the bank card and smart card lamination.
3.Yellow resistance,

4.Magnetic strip is not easy to peel off .

2. Features of Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film

Technical note:

In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.

Steps to make cards:

1.Put printing core and two overlays together, then put into the laminator.(the laminating temperature and time is determined as per the instruction of the machine).Please be noticed that all glue sides of both PVC sheets and Overlays are put inward.

2.Tlamination lasts 10-15 minutes. The pressure is 6-8Mpa.The temperature is 120-140°C.

3.Cutting the card.

Size	A4, A3 or as per customer requirements
Coated overlay thickness range in mm	0.04,0.05,0.06,0.08,0.10
Magnetic stripe feature	HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY
Size tolerance	+/-0.5 mm in length and width, +/-5% in thickness.
Color	transparent with one-side glue coating
Package method	100/200 sheets per bag or as per customer requirements
Storage condition	Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

3.Description of Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film

Product Description

Product Name: PVC Coated Overlay with Black Magnetic Stripe

PVC Coated magnetic stripe overlay film is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.

Using method: cover the printed plastic sheets and then laminate together.

Product name	Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film
Common size	A4, 210x297mm (A3, customized )
Thickness	0.08mm(0.04mm and 0.10mm are available)
Appearance	transparent
Coated	glue on back
Laminating temperature	110-150℃
Storage	-10~35℃, sealed, moisture-proof
Shelf life	2 years
Packing	100pcs/bag, 4000pcs/carton
carton dimensions	450x340x190mm
Gross weight	28kg
