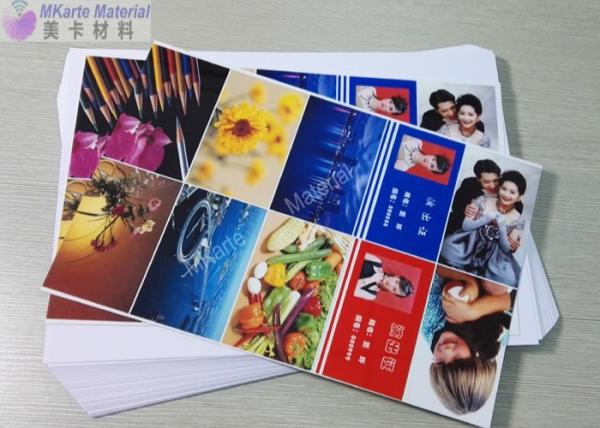

0.18mm Smart Card Material Dual side Digital Printing PVC Sheets
1. Description of 0.18mm Smart Card Material Dual side Digital Printing PVC Sheets
It is our new mature products with very big market share worldwide. They are wildely used by many card factories worldwide. It is specially used for various digital printers such as HP Indigo, Konica Minolta, MGI and Fuji Xerox printers. Both of its sides have digital printing coatings and the sheet can be directly printed on both sides. The printed sheet has high degree of color restoration and color uniformity. It features excellent ink adhesion, strong peeing strength after lamination with the matching coated overlay.
| Size | A4, A3 or as per customer requirements (tolerance +/-0.5mm) |
| Thickness | 0.15mm-0.40mm |
| Color | Common white/supper white |
| Package method | 100 or 200 sheets/package. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ |
2. Usage of of 0.18mm Smart Card Material Dual side Digital Printing PVC Sheets
Our PVC sheet can be made Bank card, Credit card, Membership card, SIM card and so on.
It can make laminated or non-laminated cards,it can be printed, coated, jetted with all colors, punched.
1). Low dust
2). Excellent stable quality
3). Exact sheet size cutting and thickness control
4). Low static easy for sheet feeding
5). Smooth roughness
6). Adjustable VICAT degree
7). Adjustable Opaque degree
8). Perfect packaging for transportation
9). Special formulation according to each client's requirement
10). Surface tension can over 40 Dyne
11). Less than15 days Short Lead Time
12). Best after sell service
3. Product test of 0.18mm Smart Card Material Dual side Digital Printing PVC Sheets
| Product test report | ||||
| Product Name: 0.18mm Smart Card Material Dual side Digital Printing PVC Sheets | ||||
| Inspected Items | Unit | Inspection Standard | Test Result | |
| Appearance | The color is even, No black impurity spots, No obvious scratch | Meet the requirements | ||
| Length | mm | ±1 | OK | |
| Width | mm | ±1 | OK | |
| Thickness | mm | ±10% | OK | |
| Squareness | mm/m | ≤1 | 0.4 | |
| Density | g/cm3 | 1.42±0.05 | 1.41 | |
| Chromatic aberration | ∆E | ≤1.0 | 0.51 | |
| Pulling Strength | MD | MPa | ≥45 | 47 |
| CD | ≥43 | 43.1 | ||
| Roughness Ra | 4# | ṷ m | 0.7～1.8 | 1.28 |
| 5# | ṷ m | 0.7～1.8 | 0.97 | |
| Roughness Rz | 4# | ṷ m | 4～12 | 7.912 |
| 5# | ṷ m | 4～12 | 6.91 | |
| Surface Tension | 4# | Dynes/cm | ≥34 | 34.5 |
| 5# | ≥34 | 34 | ||
| Heating shrinkage rate | MD | % | ≤-6.0 | -2 |
| CD | ≤+2.2 | 0 | ||
| Whiteness | 96.2 | |||
| Transmittance | % | 5.5 | ||
| Vicat softening point | ℃ | 78±2 | 78.9 | |
|
|
