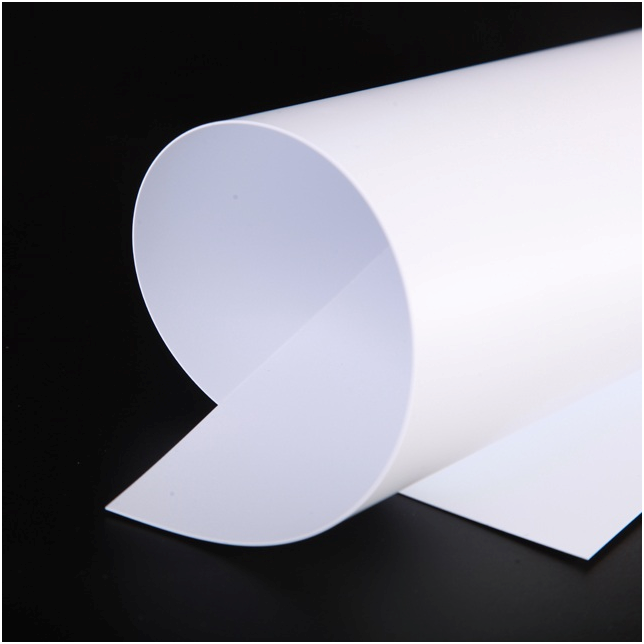

0.33mm Customized Size Offset Printable PVC White Core Sheet
1. Specification of 0.33mm Customized Size Offset Printable PVC White Core Sheet
Offset printing sheets MOP series are designed for offset printer
and silk screen printer use. They can also be used as non-printed
middle core sheet. They are massively used by many card factories
worldwide.
1) Suitable for the whole series of offset printer and silk screen
printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after
lamination.
4) No crack occurs on the printed images after lamination at high temperature.
Technical parameters:
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
2. Parameters of 0.33mm Customized Size Offset Printable PVC White Core Sheet
Roughness: Both sides matte
Vicat point: 77+2 ℃ (ISO306B50)
Width: <=1530mm
Inner Core Diameter: 3’’(76mm)
| Item | Unit | Value | |
| Density | g/cm3 | 1.42±0.05 | |
Tensile Strength | Horizontal | MPa | ≥44 |
| Vertical | ≥46 | ||
| Vicat 5kg | ℃ | 80±2 | |
Surface Roughness | Ra | μm | 0.7~1.8 |
| Rz | 4.0~12.0 | ||
| Surface Dyne | dynes/cm | ≥34 | |
*Customized design is availalbe.
3. Packing of 0.33mm Customized Size Offset Printable PVC White Core Sheet
Package method: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.
Storage condition: Sealed, moisture-proof, room temperature under 40℃
|
|
