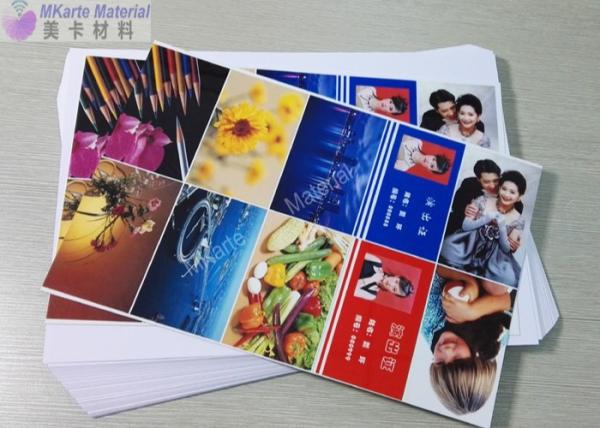

A3 Size 0.76mm Smart Card Material PVC Core Sheet Silk Screen Printing
1. Technical Data of A3 Size 0.76mm Smart Card Material PVC Core Sheet Silk Screen Printing
Offset printing sheets MOP series are designed for offset printer
and silk screen printer use. They can also be used as non-printed
middle core sheet. They are massively used by many card factories
worldwide.

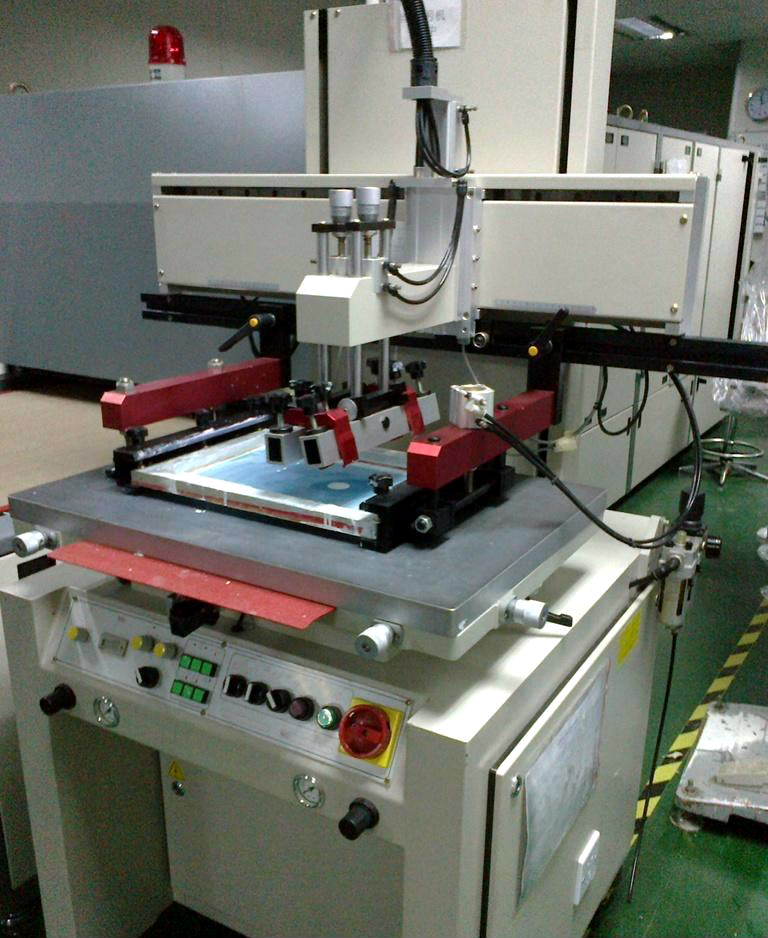

1) Suitable for the whole series of offset printer and silk screen
printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after
lamination.
4) No crack occurs on the printed images after lamination at high temperature.
Technical parameters:
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
2. Features of A3 Size 0.76mm Smart Card Material PVC Core Sheet Silk Screen Printing
1). Low dust
2). Excellent stable quality
3). Exact sheet size cutting and thickness control
4). Low static easy for sheet feeding
5). Smooth roughness
6). Adjustable VICAT degree
7). Adjustable Opaque degree
8). Perfect packaging for transportation
9). Special formulation according to each client's requirement
10). Surface tension can over 40 Dyne
11). Less than15 days Short Lead Time
12). Best after sell service
| Item | Unit | Value | |
| Density | g/cm3 | 1.42±0.05 | |
Tensile Strength | Horizontal | MPa | ≥44 |
| Vertical | ≥46 | ||
| Vicat 5kg | ℃ | 80±2 | |
Surface Roughness | Ra | μm | 0.7~1.8 |
| Rz | 4.0~12.0 | ||
| Surface Dyne | dynes/cm | ≥34 | |
*Customized design is availalbe.
3. Application of A3 Size 0.76mm Smart Card Material PVC Core Sheet Silk Screen Printing
Our PVC sheet can be made Bank card, Credit card, Membership card, SIM card and so on.
It can make laminated or un-laminated cards, can be printed, coated, jetted with all colors, punched.
|
|
