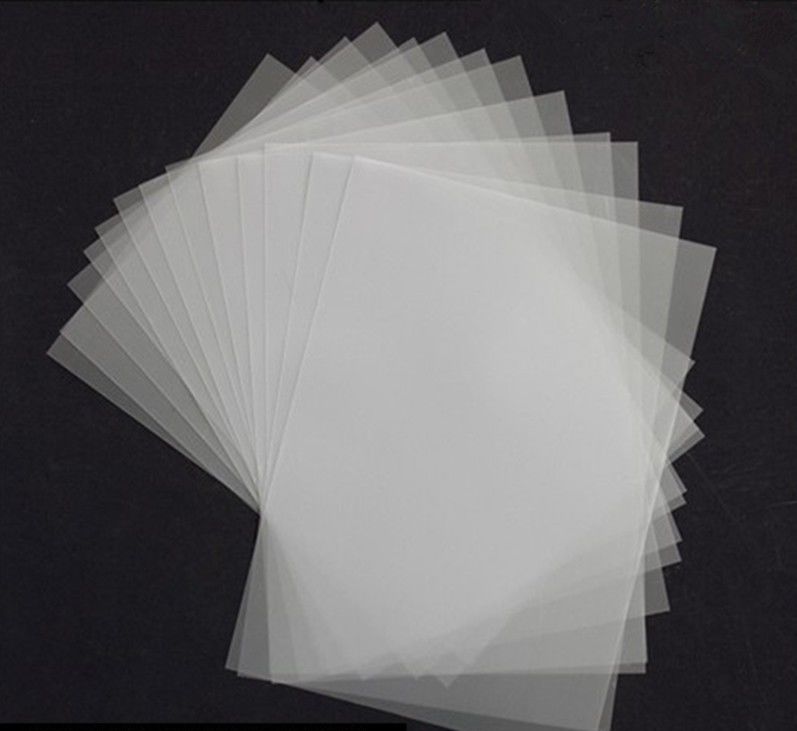

Low Vicat PC Core Sheet Polycarbonate Plastic Sheets For Contactless IC Cards Production
| 1. Introduction of Low Vicat PC Core Sheet Polycarbonate Plastic Sheets For Contactless IC Cards Production |
Polycarbonate PC Card Core Sheet (Model: MCS-PC-INLAY) is specially designed for INLAY sheet production of Contactless or RFID PC Card. It is featuring lower vicat softening point, which can provide good protection on chips inside during the process of laminator grading lamination process. It is known as the high-quality PC sheet for various contactless or RFID PC cards.
| Item | PC Core Sheet |
| Color | White or Transparent |
| Thickness Range(mm) | 50micron-1000micron |
| Vicat point ℃ | 145±2 |
| Tensile strength | ≥50 Mpa |
| Surface | Both sides matt |
| Density | 1.3 |
| Transparency | ≤5 |
| Heat shrink | ≤0.5 |
| Surface roughness | ＜1.5 |
| Surface tension dynes/cm | ≥38 |
| 2. Specification of Low Vicat PC Core Sheet Polycarbonate Plastic Sheets For Contactless IC Cards Production |
Features:
1. Excellent strength and wear-resisting
2. High temperature and low temperate resistance;
3. Perfect image of laser etching technology support, apply to
identity cards with anti-fake requirements.
4. Non-toxic, environment-friendly material
5. Vivid color and high resolution photo quality.
6. Longer service life
| Product model | Product name | Thickness Range mm | Color | Vicat ℃ | dynes/cm | Apparent density g/cm3 | Peel strength N/cm | Main application |
| PC | PC core | 0.10-0.8 | White Black Transparent | A50=145±2 | ≥38 | 1.3 | / | It is used for national ID cards and other high grade cards.It is capable of achieving laser ablation, sunken cord, leveling up, printed layer,and has resistance to high temperature, high strength and environmental protection. |
| Item | Unit | Value | |
| Density | g/cm3 | 1.30 ±0.05 | |
| Tensile Strength | Horizontal | MPa | ≥50 |
| Vertical | ≥50 | ||
| Vicat | ℃ | 85-90 | |
| Surface Dyne | dynes/cm | ≥38 | |
| Thickness range | mm | 0.05-1.0mm | |

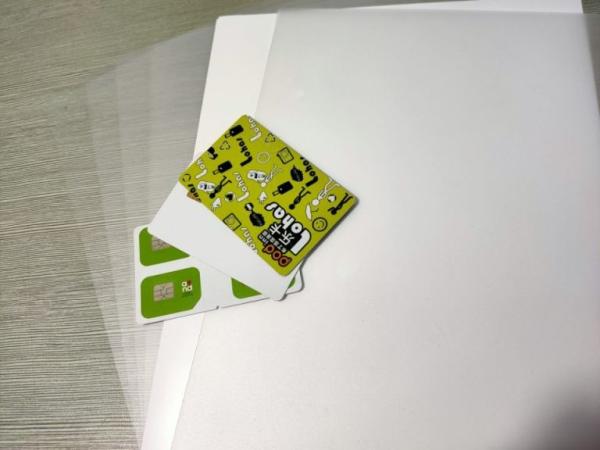

| 3. Usage of Low Vicat PC Core Sheet Polycarbonate Plastic Sheets For Contactless IC Cards Production |
Comparing with other types of plastic core sheets for card body production, it excels in outstanding optical clarity, printability, impact strength and dimensional stability. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.
|
|
