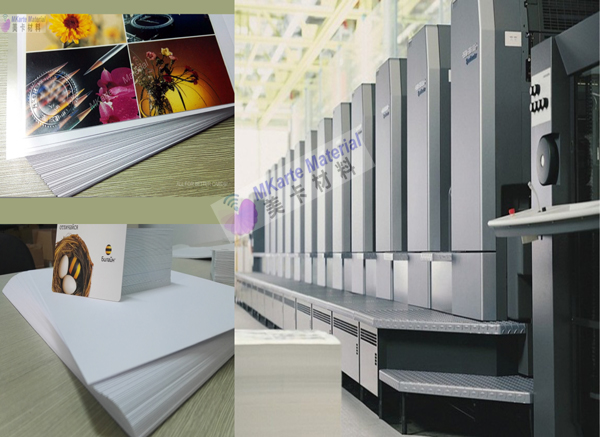

Customized Size White Offset Printing PVC Core Sheet With Excellent Ink Adhesion
1. Introduction of Customized Size White Offset Printing PVC Core Sheet With Excellent Ink Adhesion
This kind of ordinary PVC sheet can be used for laminating, non-laminating, printing, coating and
cutting, such as membership cards and calendars.
1. Thickness: 0.12-0.76mm
2. Color: Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)
3. Suitable printer models: The whole series of offset printer and
silk-screen printers
4. Package method: 100-200 sheets per PE bag, all the bags are
firmly piled up and fixed on the solid plywood pallets.
5. Storage condition: Sealed, moisture-proof, room temperature under 40℃
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
2.Technical Specification of Customized Size White Offset Printing PVC Core Sheet With Excellent Ink Adhesion
1). Low dust
2). Excellent stable quality
3). Exact sheet size cutting and thickness control
4). Low static easy for sheet feeding
5). Smooth roughness
6). Adjustable VICAT degree
7). Adjustable Opaque degree
8). Perfect packaging for transportation
9). Special formulation according to each client's requirement
10). Surface tension can over 40 Dyne
11). Less than15 days Short Lead Time
12). Best after sell service
| Size | in sheet A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Thickness | 0.12-0.76mm (tolerance +/-5%) |
| Color | Milk White (MOP-W-NF model)/Snow White (MOP-W-F model) |
| Coating description | digital ink coating on one side and lamination glue coating on another side. |
| Package method | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight |
*Customized design is availalbe.
3.More Details of Customized Size White Offset Printing PVC Core Sheet With Excellent Ink Adhesion
It is mainly used for making credit card. Such material can achieve telegraphing (embossed), the material does not contain the substance for entering and modifying magnetic materials, capable of being labeled with magnetic stripe and encapsulated module, usually, it is matched with overlay film for use. PVC Bank Card Base is mainly used for bank, capable of making credit card, financial IC card.
Product Advantage:
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
6. Wide Usage
It can be laminated with uncoated overlay film after uv offset priting or screen printing.
|
|
