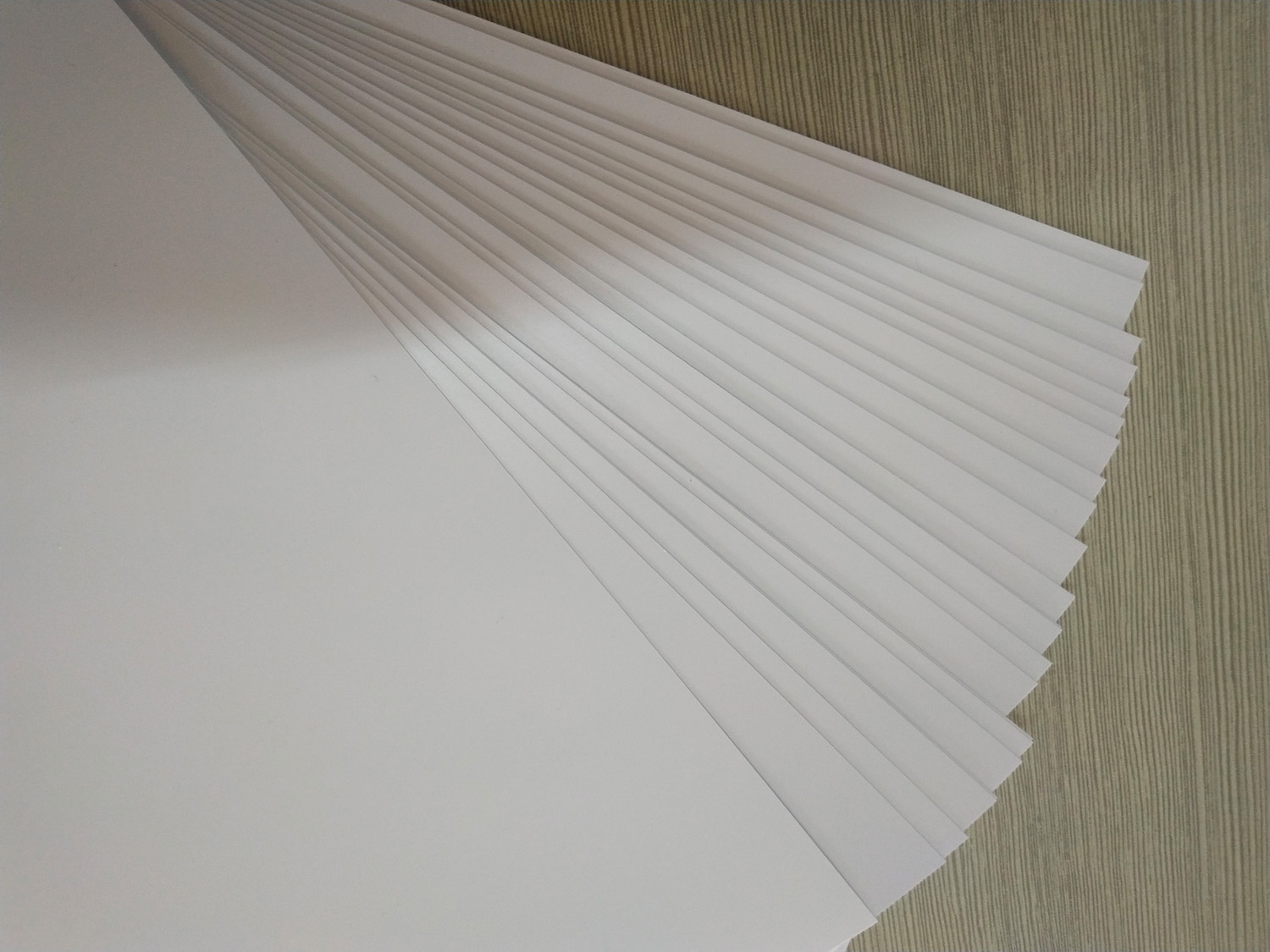

0.3mm White Color PVC Core Sheet Offset Printable Aging Resistance
1.Technical specification of 0.3mm White Color PVC Core Sheet Offset Printable Aging Resistance
Technical parameters:
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
1. Thickness: 0.12-0.76mm
2. Color: Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)
3. Suitable printer models: The whole series of offset printer and
silk-screen printers
4. Package method: 100-200 sheets per PE bag, all the bags are
firmly piled up and fixed on the solid plywood pallets.
5. Storage condition: Sealed, moisture-proof, room temperature under 40℃
2. More details of 0.3mm White Color PVC Core Sheet Offset Printable Aging Resistance
Product Advantage:
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
6. Wide Usage
It can be laminated with uncoated overlay film after uv offset priting or screen printing.
Product Advantage:
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
6. Wide Usage
| Size | in sheet A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Thickness | 0.12-0.76mm (tolerance +/-5%) |
| Color | Milk White (MOP-W-NF model)/Snow White (MOP-W-F model) |
| Coating description | digital ink coating on one side and lamination glue coating on another side. |
| Package method | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight |
3. Packing of 0.3mm White Color PVC Core Sheet Offset Printable Aging Resistance
| Packing Details |
| Common package: PE bag+ Kraft paper/PE wrapping + PP belt+Wooden Pallet |
| Packaging size: 3'x6'(915x1830) /4'x8'(1220x2440) pallet or any customized size wooden pallet. |
| Delivery time: 10 Days after the receipt of 50% deposit. |
| Payment: 50% deposit and 50% T/T before shipment. |
|
|
