0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1

1. Introduction of 0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1

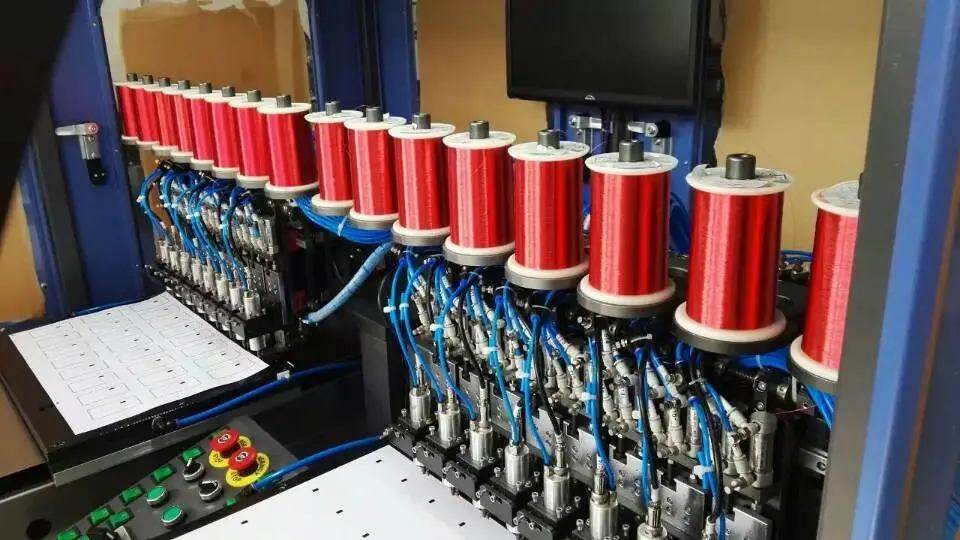

Self-Adhesive Card Antenna Copper Wire MACW-1 is specially used for making the copper antenna by means of ultrasonic embedding process. It applies polyurethane material with the temperature resistance degree of 160-180 degree Celsius.

2. Features of 0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1

It is produced according to JIS or NEMA standards. It features stable resistance, perfect viscosity, color uniformity and good product consistency. It has been widely used by many card INLAY producers worldwide.

3. Application of 0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1

4. Technical Parameters of 0.1mm Diameter Red Or Silver RFID Inlay Self-Adhesive Card Antenna Copper Wire MACW-1:

1. ) Color: Red
2. ) Conductor diameter(mm): 0.10±0.001
3. ) Electrical resistance (Ω/m): 2.176±3%
4. )Size: Overall diameter(mm): 0.135±0.004; Insulated layer(mm): 0.019~0.023; Adhesive layer thickness(mm): 0.012~0.016
5. ) Elongation(%): ≥19%
6. ) Intensity(g): ≥130
7. ) Brine Pinhole(Piece): ≤6M/8
8. ) Breakdown voltage(V): ≥2200
9. ) Solder temperature(℃): 380±5℃
10. ) Self-adhesive method: Bonding with hot air
11. ) Melting strength(g): ≥30
12. ) Melting temperature(℃): 160~180℃
13. ) Temperature level: F
14. ) Shelf life(20℃): 1-2 years
